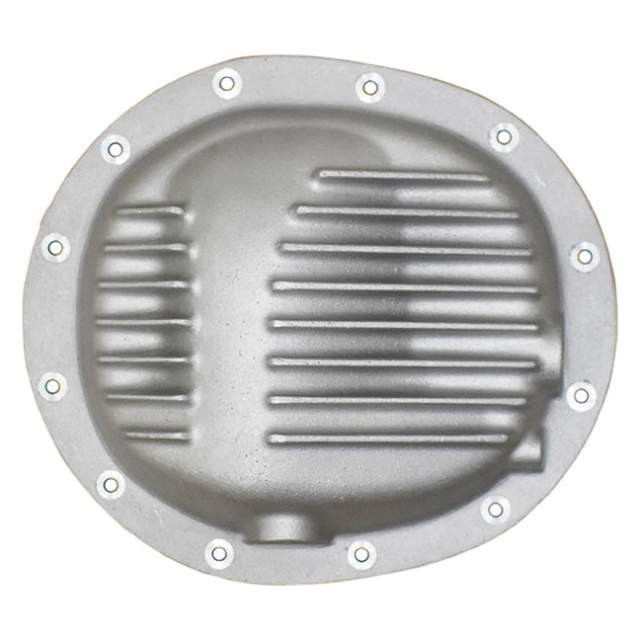

GM 9.5 12 Bolt Rear Differential Cover – Heavy Duty Aluminum Upgrade
- SKU:
- PMLI-DCASMAS11172-0620
- MPN:
- DC-ASM-11172-AC
- Availability:
- Usually ships in 2-7 business days
Description
Enhance the durability and performance of your drivetrain with this GM 9.5 12 Bolt Rear Differential Cover, designed to provide superior protection and improved cooling under demanding conditions. Whether you're towing, hauling, or driving in high-performance environments, this upgraded cover helps maintain optimal differential operation.
Constructed from high-quality aluminum, this differential cover offers increased strength compared to factory stamped covers. The heavy-duty design helps protect internal components from damage while improving heat dissipation to keep your differential operating at optimal temperatures.
Engineered as a direct-fit replacement for GM 9.5 12 bolt rear differentials, this cover ensures dependable fitment, secure sealing, and long-lasting reliability.
✅ Key Features:
- Fits GM 9.5 12 bolt rear differentials
- Heavy-duty aluminum construction for strength and durability
- Improves heat dissipation and cooling
- Provides added protection for internal components
- Ideal for towing, hauling, and performance applications
- Direct fit for easy installation and leak-free sealing
Upgrade your differential with confidence and ensure maximum durability and performance in demanding conditions.
Volume: 0.3 quarts over stock, approximately
Dimensions: Click here for dimensions.
Number of Bolts: 12 bolts
PML has designed and manufactured a rear differential covers for 2019 and newer Silverado and Sierra 1500 trucks and GM 1/2 ton SUVs and vans.
Some 2019 trucks and SUVs have this new differential and some have the same differential as the 2014 to 2018 trucks. The 12 bolt rear differential cover on 2014 and newer vehicles looks similar but is slightly smaller and the area around the fill hole is different. The gaskets are different also. See APPLICATIONS and SPECIFICATIONS sections for details.
The ring gear may be 9.5 or 9.75 and this new differential is probably made by GM, not American Axle (AAM).
Benefits
PML designed this cover with fins, drain, and a shape similar to stock.
Click on image to view larger
Applications:
This differential is found on some 2019 and newer Silverado and Sierra 1500. Similar Cadillac, Chevrolet, and GMC SUVs, trucks and vans may also have this differential.
Always check your vehicle to verify configuration and clearance.
For the similar GM AAM 9.5, 9.76 12 bolt rear differential cover see PML Part Number 11129. PML Part Number 11129 works with 2014 to 2018 and some newer vehicles.
The OEM gasket part number is 84412728.
See the SPECIFICATIONS section for information on determining if your vehicle needs this cover or PML part number 11129.
Stock Cover and OEM Gasket Part Number
This PML differential cover, part number 11172, is designed to replace this stock cover:
Click on image to view larger.
Always check your vehicle to verify configuration and clearance for a larger, aftermarket differential cover.
The OEM gasket part number is 84412728.
Click on image to view larger.
Comparing 2014 and Newer and 2019 and Newer Stock Covers
Area around and below fill hole is different. The bolt hole pattern and size is slightly different but it is easiest to see the difference around the fill/level check hole.
Click on image to view larger.
To figure out which you have, try checking the OEM gasket part number or visually comparing your cover to the picture above.
Drain, Level Check and Optional Temperature Sending Unit Machining
This PML cover has a drain hole on the bottom for easy servicing of differential. Fill/level check hole is on the side. Hardware is included with cover.
If you have an aftermarket temperature sending unit and gage to monitor fluid temperatures, there is a boss that can be machined for a 1/8 NPT hole for the temperature sending unit.
Click on image to view larger.
Inside of PML Cover
The inside of this PML differential cover follows a shape similar to that of the stock cover:
Click on image to view larger.
Included with Package with PML Differential Cover
With the differential cover, PML includes new mounting bolts and washers, a plug for the level check hole and a magnetic drain plug with a reuseable copper sealing washer.
Click on image to view larger.
Additional Information
Year: |
2019 and up |
Make: |
GM / Chevrolet |
Model: |
Truck / SUV (See Application Chart) |
